Name :

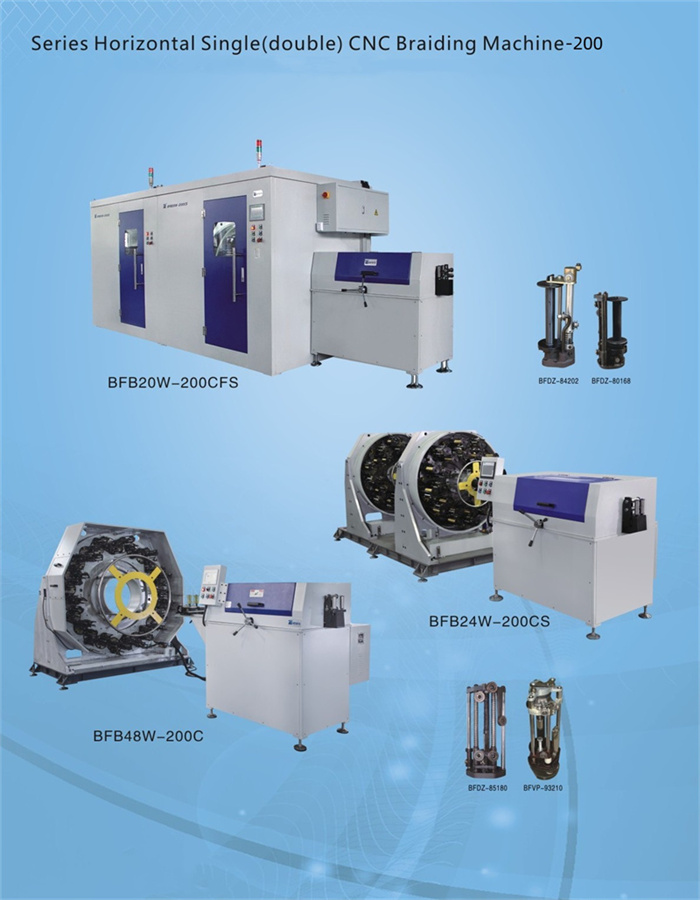

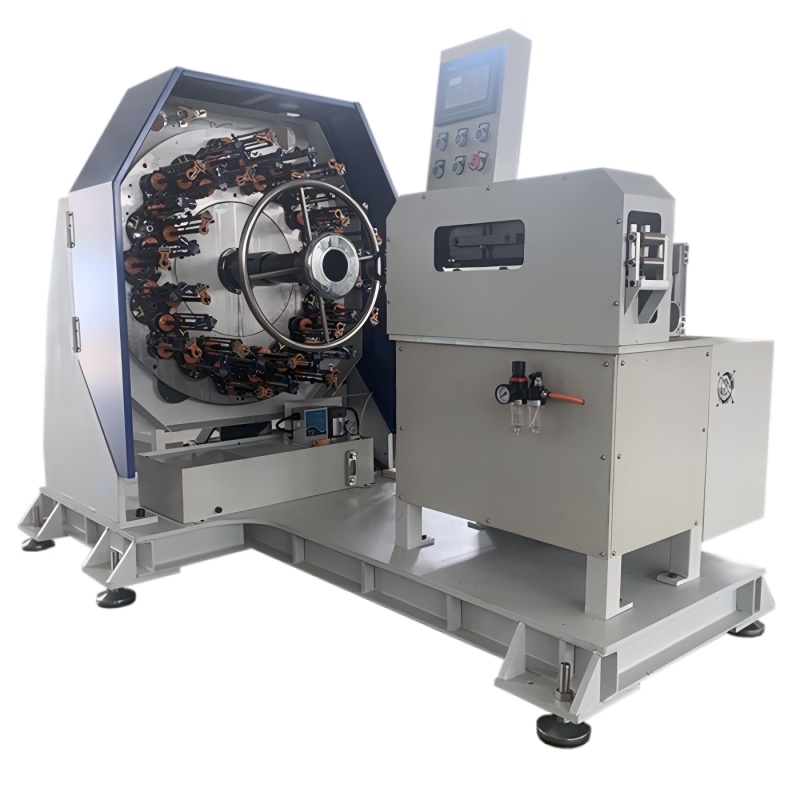

hydraulic hose braiding machineCountry of origin :
ChinaPayment terms :
T/T,L/C, D/P, Western Union, Paypal, Money GramLead time :
30 daysHorn gear :
114mmBraided hose ID :
16-58mmCarrier numbers :
8-96Bobbin size :
56x22x170mmCarrier speed(PRM) :
20-55 RPMBobbin capacity :
130cm³-360cm³Power :
1.5-3.0 KWWire materials :
Stainless steel wire ,textile, glass fiber,nylonApplications :
Sanitary hose, cable ,car and motor hose, high pressure rubber hose field.Company type :
Braiding machine manufacturer leader 30 years
wire braiding machine manufacturers:

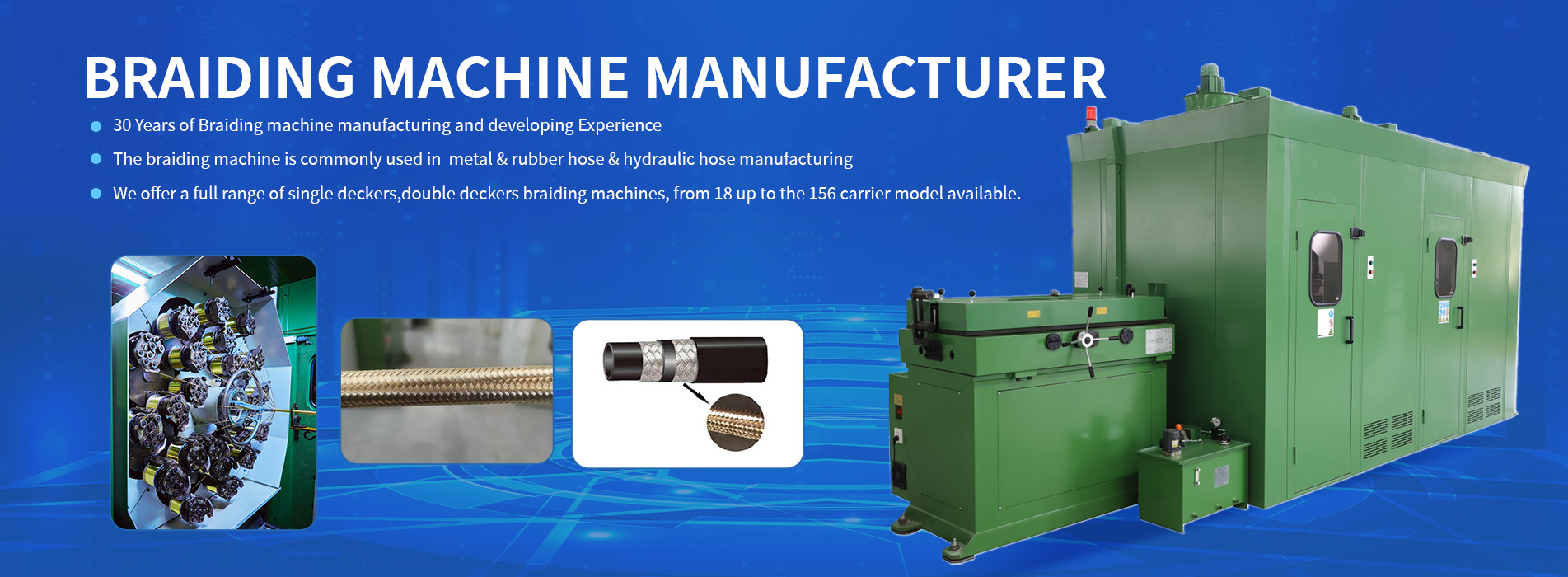

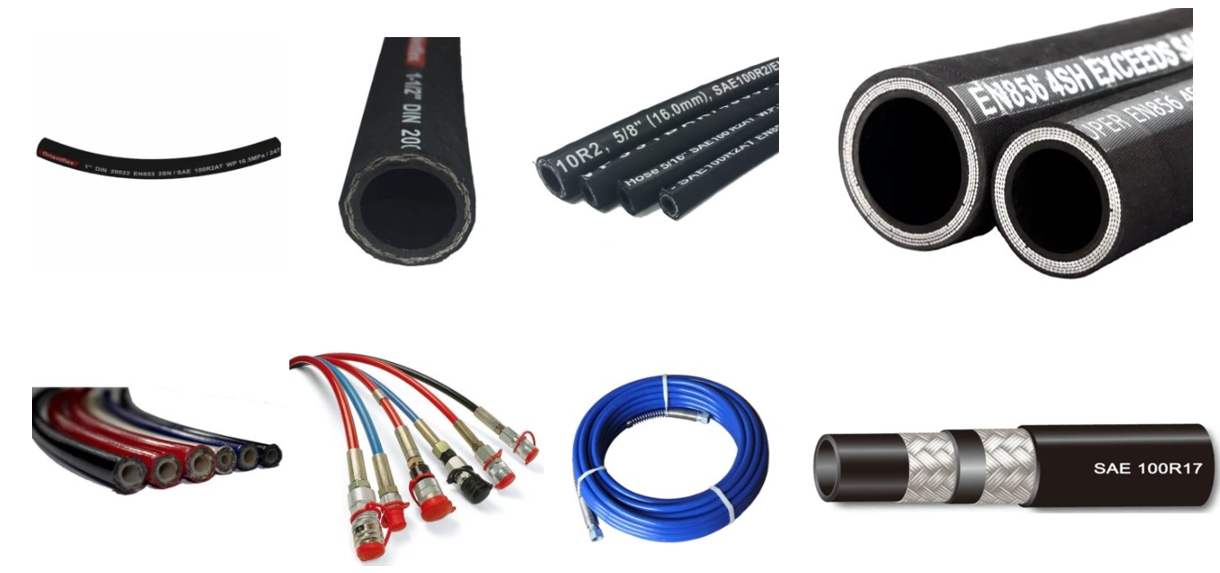

*Hydraulic hose *High pressure wire/rubber/oil hose *SS wire sleeve *Air conditioning hose for car *car and motor rubber hose *sprayer rubber hose
our hydraulic hose braiding machine can produce below ruber hose specifications.

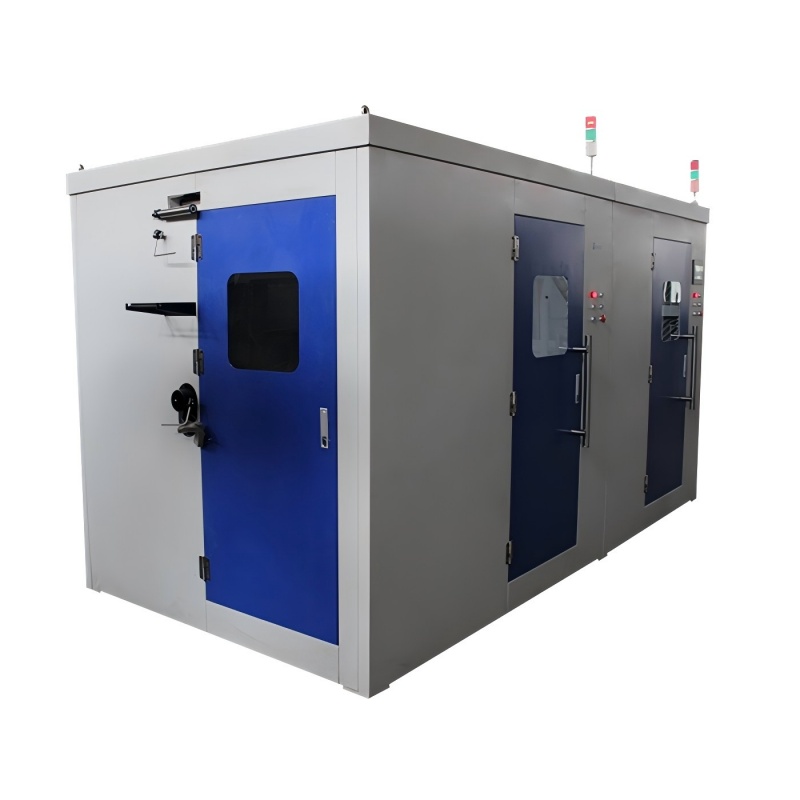

Overview of wire braiding equipment:
Our braiding machine is an advanced model, developed based on the RB-2/4/6 structure, designed for high braiding speed and superior production efficiency.
This innovative machine incorporates unique features for optimized performance in steel wire braiding.
Key Features of the Braiding Machine
1. Large Spindle Wire Capacity:
• Handles up to 14KG per spindle (steel wire).
2. Spindle Compensation Device:
• Balances distance differences between the outer ring and the braid point of the inner ring.
• Maintains fabric tension within 76-90% of spindle pay-off tension.
• Equipped with a stepless pay-off structure, ensuring a long service life and low failure rate.
3. Double-Rotating Thread-Passing Design:
• Inner and outer spindle groups rotate in opposite directions while maintaining consistent movement paths.
• Circular and shorter spindle movement paths enable faster operational speed.
4. High Running Speed:
• Enhanced production efficiency compared to traditional braiding machines.
5. Advanced Drive System:
• Independent motors drive the main engine and tractor, controlled via PLC for precision.
• Features a slow tram drive for fine adjustments.
• Tractor-independent drive for optimal material handling.
6. Automatic Lubrication System:
• Ensures smooth operation and reduces maintenance requirements.
7. Comprehensive Detection Systems:
• Monitors for broken wires, tube blanks, medium film, and fabric tension.
• Triggers automatic alarms and stops the machine when issues are detected.
8. User-Friendly Interface:
• Intuitive PLC-controlled system for streamlined operation.
9. Intelligent Fault Alarms:
• Provides real-time fault alarms and parking prompts for quick troubleshooting.
This innovative machine is ideal for businesses seeking efficiency, reliability, and superior braiding performance.
Ruber hose braiding machine technical data:
|
Technical parameters of BZH series 2×2 |
|||
|
|
20 spindles |
24 spindles |
36 spindles |
|
Spindle Number |
20 |
24 |
36 |
|
Maximum Speed (rpm) |
63.00 |
52.50 |
35.00 |
|
Center Height (mm) |
1125 |
1125 |
1365 |
|
Braiding Diameter (mm) |
8.5~23 |
11.5~31 |
15~63 |
|
Wire Capacity (Steel Wire) |
14Kg |
14Kg |
14Kg |
|
Total Power (kW) |
20 |
22 |
33 |
|
Outline Dimension |
6150x2000x3065（mm) |
6150x2000x3065（mm) |
7315x2560x3415（mm) |
|
Technical parameters of BZH series 3×3 |
|||
|
|
18 spindles |
24 spindles |
36 spindles |
|
Spindle Number |
18 |
24 |
36 |
|
Maximum Speed (rpm) |
86.30 |
64.70 |
43.10 |
|
Center Height (mm) |
1125 |
1125 |
1365 |
|
Braiding Diameter (mm) |
8.5~23 |
11.5~31 |
15~63 |
|
Wire Capacity (Steel Wire) |
14Kg |
14Kg |
14Kg |
|
Total Power (kW) |
20 |
27 |
38 |
|
Outline Dimension |
6150x2000x3065（mm) |
6150x2000x3065（mm) |
7315x2560x3415（mm) |
Steel wire braiding machine can produce below ruber hose specifications:
| TYPE | SIZE(") | IN(mm) | OD(mm) |
| SAE J517 100 R1AT | 1/4 | 6.4 | 12.6 |
| SAE J517 100 R1AT | 5/16 | 7.9 | 14.3 |
| SAE J517 100 R1AT | 3/8 | 9.5 | 16.5 |
| SAE J517 100 R1AT | 1/2 | 12.7 | 19.6 |
| SAE J517 100 R1AT | 5/8 | 15.9 | 22.8 |
| SAE J517 100 R1AT | 3/4 | 19.0 | 26.7 |
| SAE J517 100 R1AT | 1 | 25.4 | 34.9 |
| SAE J517 100 R1AT | 1 1/4 | 31.8 | 42.6 |
| SAE J517 100 R1AT | 1 1/2 | 38.1 | 49.6 |
| SAE J517 100 R1AT | 2 | 50.8 | 62.6 |
| SAE J517 100 R2AT | 1/4 | 6.4 | 14.2 |
| SAE J517 100 R2AT | 5/16 | 7.9 | 16.0 |
| SAE J517 100 R2AT | 3/8 | 9.5 | 18.0 |
| SAE J517 100 R2AT | 1/2 | 12.7 | 21.2 |
| SAE J517 100 R2AT | 5/8 | 15.9 | 24.2 |
| SAE J517 100 R2AT | 3/4 | 19.0 | 28.2 |
| SAE J517 100 R2AT | 1 | 25.4 | 36.5 |
| SAE J517 100 R2AT | 1 1/4 | 31.8 | 46.6 |
| SAE J517 100 R2AT | 1 1/2 | 38.1 | 53.4 |
| SAE J517 100 R2AT | 2 | 50.8 | 66.2 |
| DIN20023 EN856 4SH | 3/8 | 9.5 | 21.0 |
| DIN20023 EN856 4SH | 1/2 | 12.7 | 24.2 |
| DIN20023 EN856 4SH | 5/8 | 15.9 | 27.7 |
| DIN20023 EN856 4SH | 3/4 | 19.0 | 31.8 |
| DIN20023 EN856 4SH | 1 | 25.4 | 38.5 |
| DIN20023 EN856 4SH | 1 1/4 | 31.8 | 46.0 |
| DIN20023 EN856 4SH | 1 1/2 | 38.1 | 53.3 |
| DIN20023 EN856 4SH | 2 | 50.8 | 67.1 |
