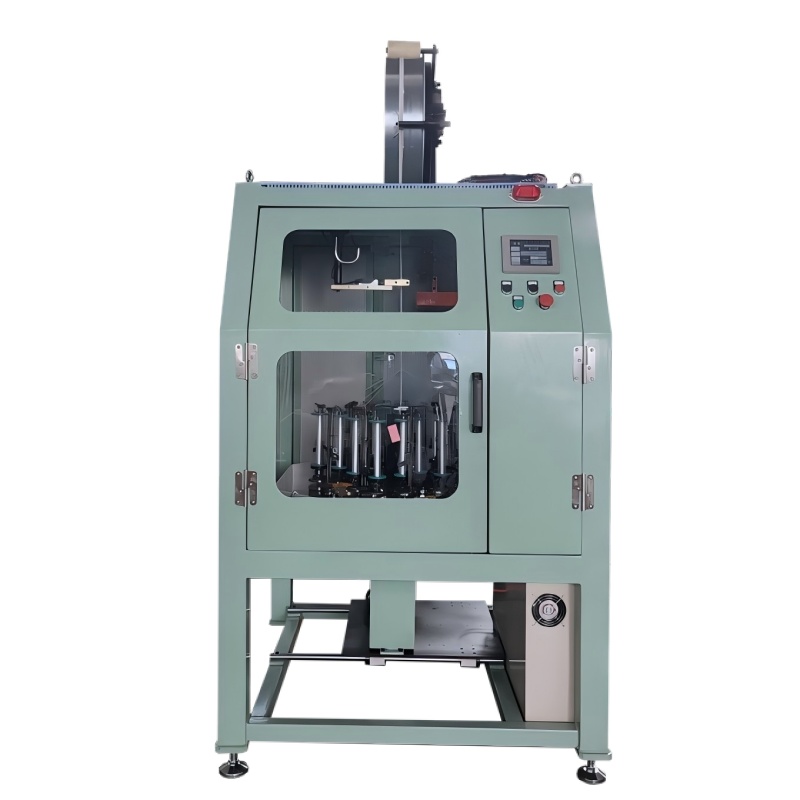

BFB-114L series vertical CNC automatic braider are widely used in sanitary industry, cable industry and high pressure hose industry ,suitable for stainless steel wire cotton yarn, aramid fiber ,carbon fiber and other braiding materials.
Name :
Hose braiding machineCountry of origin :
ChinaPayment terms :
T/T,L/C, D/P, Western Union, Paypal, Money GramLead time :
30 daysHorn gear :
114mmBraided hose ID :
16-58mmCarrier numbers :
8-96Bobbin size :
56x22x170mmCarrier speed(PRM) :
20-55 RPMBobbin capacity :
130cm³-360cm³Power :
1.5-3.0 KWWire materials :
Stainless steel wire ,textile, glass fiber,nylonApplications :

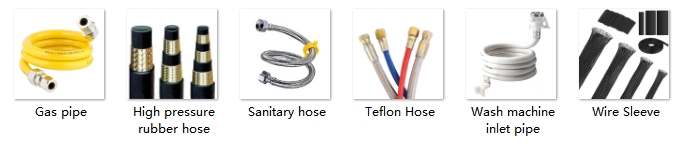

Sanitary hose, cable ,car and motor hose, high pressure rubber hose field.Company type :
Braiding machine manufacturer leader 30 yearsbraid making machine manufacturers:
| carriers per deck | bobbin dimension |
| 8-96 | 56×22×170mm |
| carrier speed [RPM] | bobbin capacity |
| 20-55 | 130cm3-360cm3 |
| Type | carrier per deck |
carrier speed RPM |
braiding machine power |
haul off motor power |
braiding pitch set up |
carrier tension |
braided hose OD |
weight |
| BFB16L-1148 | 16 | 55rpm(max) | 0.75KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤16mm | 280kg | |
| BFB24L-114AF | 24 | 45rpm(max) | 1.1KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 305kg | |
| BFB24L-114B | 24 | 45rpm(max) | 1.1KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 305kg | |
| BFB24L-114B1 | 24 | 45rpm(max) | 1.1KW | mechanical variable speed drive | 0.4kg-5.Okg | ≤24mm | 305kg | |
| BFB24L-114B Ⅱ | 24 | 45rpm(max) | 1.1KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 305kg | |
| BFB24L-114BF | 24 | 45rpm(max) | 1.1KW | mechanical variable speed drive | 0.4kg-5.Okg | ≤24mm | 305kg | |
| BFB24L-114BS | 24 | 45rpm(max) | 1.5KW-2 | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 600kg | |
| BFB24L-114C | 24 | 45rpm(max) | 1.1KW | 0.55KW | electronic parameter set | 0.4kg—5.0kg | ≤24mm | 305kg |
| BFB24L-114CF | 24 | 45rpm(max) | 1.1KW | 0.55KW | electronic parameter set | 0.4kg—5.0kg | ≤24mm | 305kg |
| BFB24L-114D | 24 | 52rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 330kg | |
| BFB24L-114Dl | 24 | 40rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤24mm | 330kg | |
| BFB32L-114B | 32 | 35rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤32mm | 400kg | |
| BFB36L-114B | 36 | 29rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 450kg | |
| BFB36L-114BI | 36 | 29rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 450kg | |
| BFB36L-114BⅡI | 36 | 29rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 450kg | |
| BFB36L-114C | 36 | 29rpm(max) | 1.5KW | 0.55KW | electronic parameter set | 0.4kg—5.0kg | ≤36mm | 450kg |
| BFB36L-114CF | 36 | 29rpm(max) | 1.5KW | 0.55KW | electronic parameter set | 0.4kg—5.0kg | ≤36mm | 450kg |
| BFB36L-114D | 36 | 29rpm(max) | 2.2KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 475kg | |
| BFB36L-114DI | 36 | 29rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 475kg | |
| BFB36L-114DⅡ | 36 | 29rpm(max) | 1.5KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤36mm | 475kg | |
| BFB48L-114AF | 48 | 20rpm(max) | 2.2KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤48mm | 128Okg | |
| BFB48L-114B | 48 | 20rpm(max) | 2.2KW | mechanical variable speed drive | 0.4kg—5.0kg | ≤48mm | 1280kg | |
| BFB48L-114CF | 48 | 20rpm(max) | 2.2KW | 0.55KW | electronic parameter set | 0.4kg—5.0kg | ≤48mm | 1280kg |
About us:

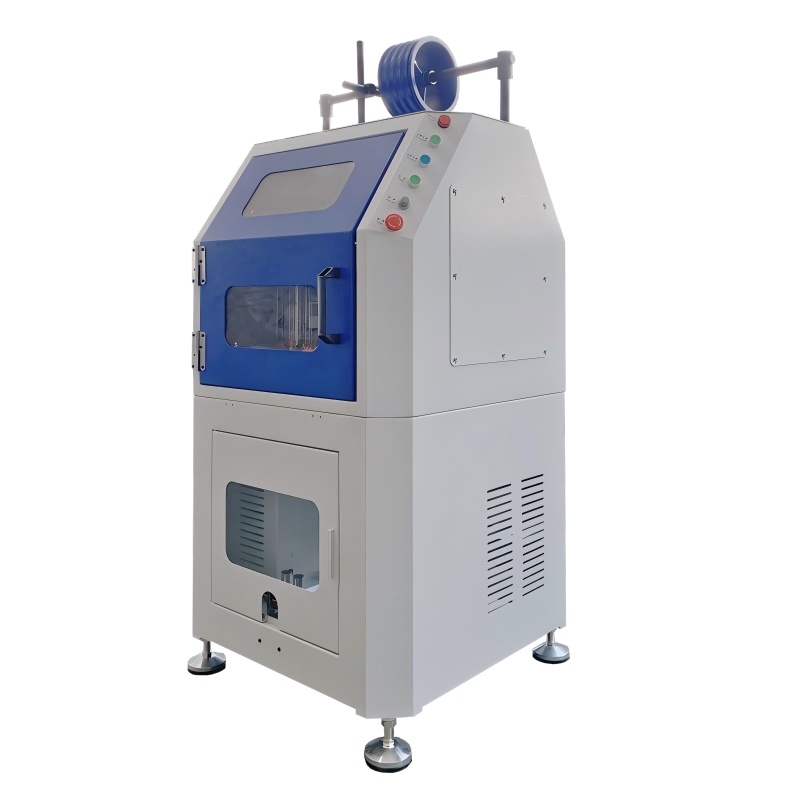

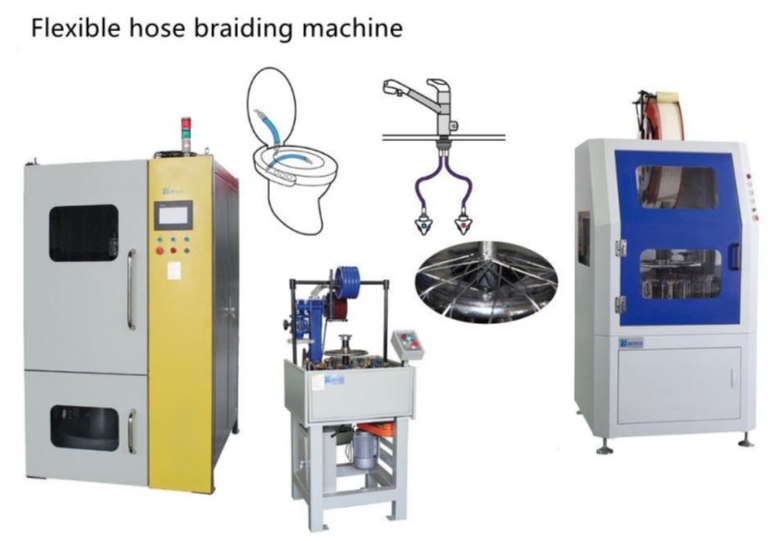

With 30 years of expertise high speed braiding machine manufacturers, our high-speed hose braiding machines are designed for precision and reliability. Flexible hose braiding machine Widely used in producing Teflon hoses, stainless steel wire sleeves, air conditioning hoses, and sanitary hoses, these machines ensure consistent quality and high efficiency. Built for versatility and durability, they are ideal for diverse industrial applications.
Read More
Our high-speed hose braiding machines are trusted by manufacturers for their precision and efficiency. Widely used in producing Teflon hoses, stainless steel wire sleeves, air conditioning hoses, and sanitary hoses, these machines are designed to meet diverse industrial needs. Key features include: 1. High Speed and Performance: Ensures fast and accurate braiding. 2. Versatile Applications: Ideal for flexible hose production across various industries. 3. Easy Maintenance: Built for durability and minimal upkeep, ensuring reliable long-term operation.
Read More

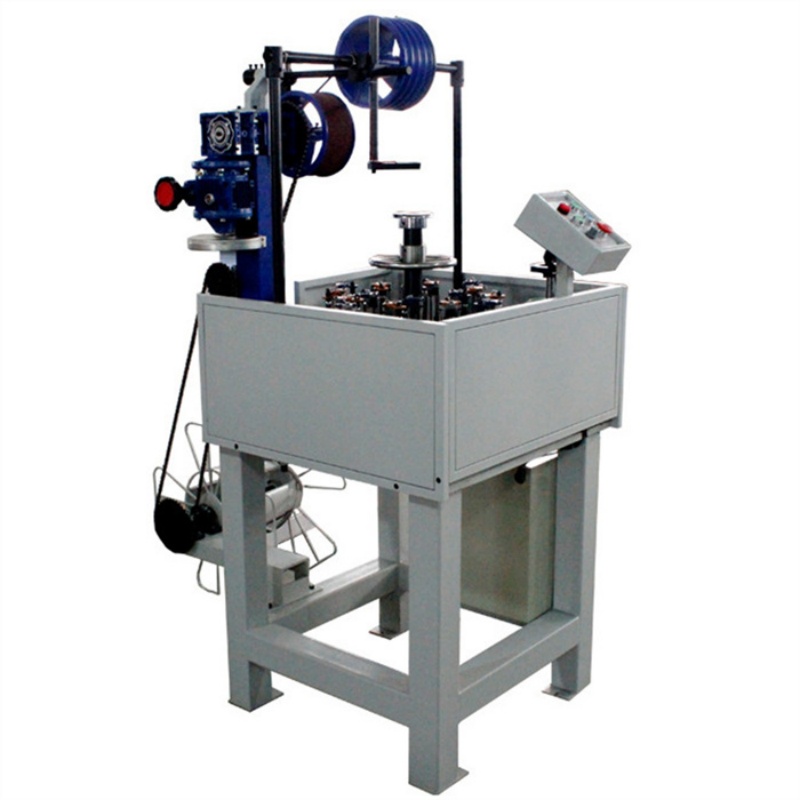

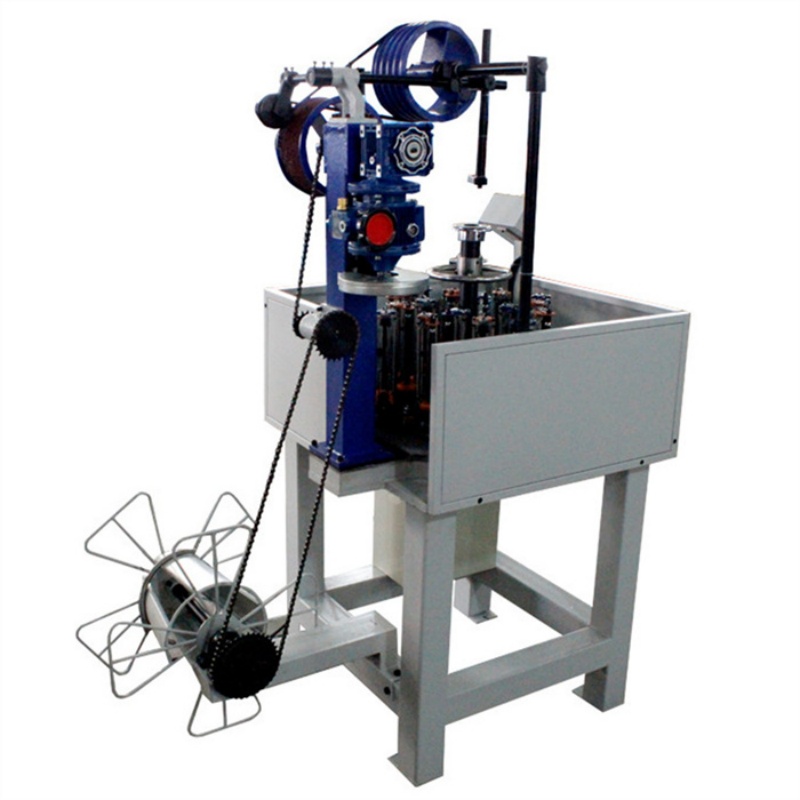

hose braiding machine widely used in teflon hose, SS wire sleeve, air conditioning hose,sanitary hose. 30 years of hose braiding machine manufacturers experience. 16 spindle flexible hose braiding machine
Read More
BFB-114L series vertical CNC automatic braider are widely used in sanitary industry, cable industry and high pressure hose industry ,suitable for stainless steel wire cotton yarn, aramid fiber ,carbon fiber and other braiding materials.
Read More
hose yarn SS wire winding machine are accessory devices to the automatic braiding machine,wire winding machine is a device which wind wire and yarn to the bobbin evenly and orderly. yarn winding machine consists of 2 parts: pay-off shaft & winding head, standalone or combined. hose yarn SS wire winding machine 1 head winding machine, 2 head winding machine, 4 head winding machine.
